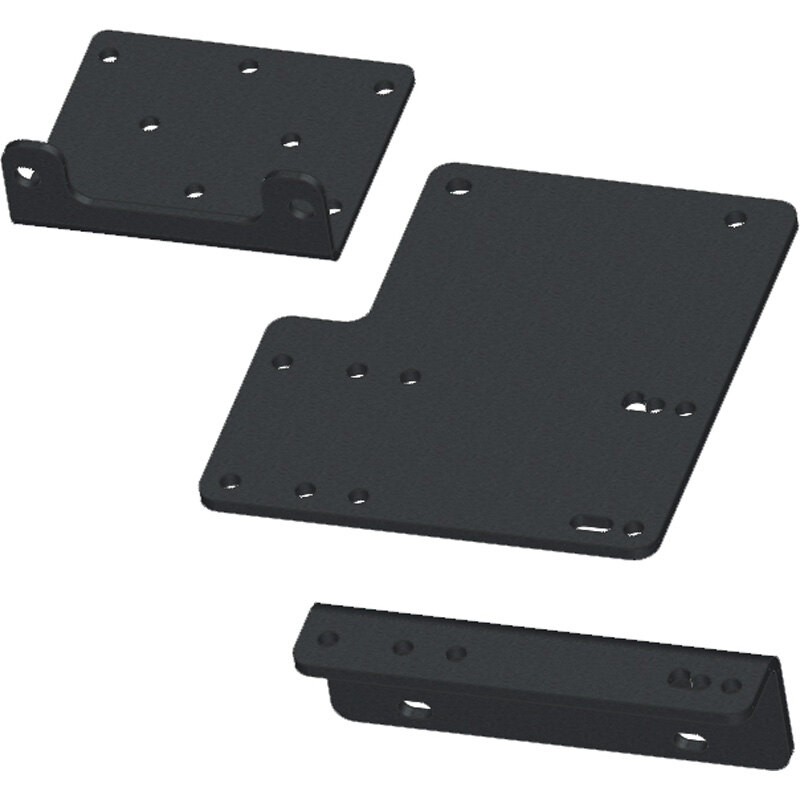

WINCH MOUNT KAW MULE 4000 SERIES

Designed to work with the following winches:

• KFI: ST17/A2000/A2500-R2/A3000/U45-R2/U45-R2w/SE25/SE35/SE45-R2/SE45w-R2
• KFI: AM-25/AM-35/AS-25/AS-35
• KFI: AS-50/AS-50w
• WARN: VRX 25/VRX 25-S/VRX 35/VRX 35-S
  • Requires standard fairlead bracket #305 1715 .
• WARN: VRX 45/VRX 45-S
  • Requires Wide fairlead bracket #305 0695 .
• WARN: AXON 35/AXON 35-S/AXON 45RC
  • Requires standard fairlead bracket #305 1715.
• WARN: AXON 45/AXON 45-S/AXON 55/AXON 55-S
  • Requires wide fairlead bracket #305 0695 .
• WARN: A2000/A2500/U2500/1.5ci/2.5ci/2.5ce/3.0ci/3.0ce/3.0s
• WARN: RT15/RT25/RT30/XT15/XT25/XT30
• WARN: RT40/XT40
• WARN: Vantage 2000-3000 lb/Provantage 2500-3500 lb
• WARN: Vantage 4000 lb/Provantage 4500 lb
• RAMSEY: ATV2500/ATV3000
• SUPERWINCH: Terra25/Terra35/Terra 45/A3500/LT2000/LT2500/LT3000/LT4000ATV/LT4000UTV
• MILE MARKER: PE2.5/PE 3.5/VMX2.5/PE2000/PE3000/PE2500/PE3500
• MASTER LOCK: 1500 lb #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY: Work Power 1500 and 2500/Powermax 2500 and 3500
• BADLAND: 2-Hole Winches: 68146/61258/61297/61840
• BADLAND: Standard Winches: 68145/61604/61257/61383
• BADLAND: WIDE Winches: 61384/68144/61605
• CHAMPION: 2-Hole Winches: 10028/10032/12001/12002/12003/12004/13001/13005/100127/C20049/C20051/C20249/C30045/C30145
• CHAMPION: Standard Winches: 10013/10018/10020/10024/12053/12503/12551/13004/13050/13502/14001/14051/14061/14560/100129/100218/100243/100335
• CHAMPION: WIDE Winches: 14008/14501/14551/14552/40252
• KEEPER CORP. TRAKKER: KT2500/KT3000/KT2500C/KT3000C/KT4000/KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: X RC 3.0/XRC 4.0
• XGEAR: X3000/X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000/2500/3000/3500/4000/4500/5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up
  • All with 3.00" x 6.600" bolt pattern mount-up
• TRAVELLER: 1078311
• TRAVELLER: 1078088/1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the standard mounting patterns below, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25/RP35

Specifications:

• 100% MADE IN THE USA.
• Constructed of 1/4” steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
