Yamaha YDX-MORO 07 30TH ANNIVERSARY

  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Yamaha YDX MORO 07 30TH ANNIVERSARY
  • Video Button Maxresdefault

CURRENT PROMOTIONS

Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Yamaha Motor Corporation has been selling Power Assist Bicycles since 1993, virtually inventing the E-bike as we know it today. To celebrate 30 years, the YDX-MORO 07 is featured in a limited edition Factory Silver with a distinct badge to commemorate the milestone. And with its lightning-fast PW-X3 drive motor, Dual Twin Frame, long list of high-spec componentry, and minimalistic controls, the YDX-MORO 07 will inspire you to go for one more loop.

Specifications
Model
YDX-MORO
Category Name
E-Bikes
Year
2024
Manufacturer
Yamaha
Color
Argent d'usine
Engine Size
123 cc
FORK
ROCKSHOX LYRIK SELECT with Low-speed Compression and Rebound adjustment
SIZE
Small, Medium, Large
CHAIN
KMC eTURBO EPT 122 links
FRAME
Yamaha Dual Twin Frame with Tapered Headtube
GRIPS
VELO Single Ring Lock
OUTPUT
500Wh 36V
SHIFTERS
Shimano XT SL-M8100-R
HANDLEBAR
Alloy- 35.0mm diameter, 780mm width, 30mm rise
MAX TORQUE
85Nm
Motor Type
Yamaha PW-X3 Class 1 Labeled Centermount
REAR SHOCK
ROCKSHOX SUPER DELUXE SELECT + with 15 clicks of rebound adjustment, 2-position compression adjustment
TECHNOLOGY
Charge-life indicator and Self-diagnosis display
TIRES/TUBES
MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON
DISPLACEMENT
123 cc
TOTAL WEIGHT
23.3kg (51.3lb) (M)
BRAKES/ROTORS
MAGURA MT5 4-Piston F/R 203MM Centerlock Rotor (F/R) with Single-Finger lever
SUGGESTED USE
All Mountain Class-1 Ebike Off-Road Trail
SUPPORT MODES
ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
RE-CHARGE TIME
1-hour 80%, 4-hour 100%
MOUNTING SYSTEM
Anti-Vibration Mounting Plate
MAX SPEED SUPPORT
32.2 kph (20mph)

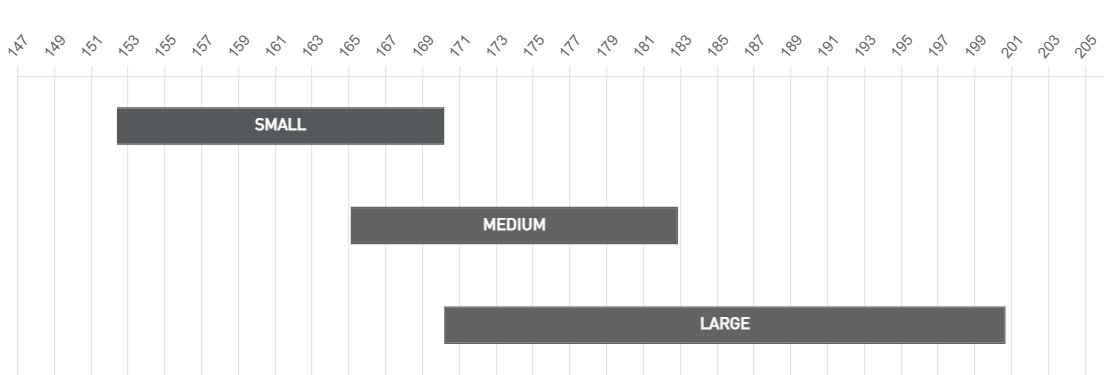

sizing

Yamaha YDX MORO 07 30TH ANNIVERSARY

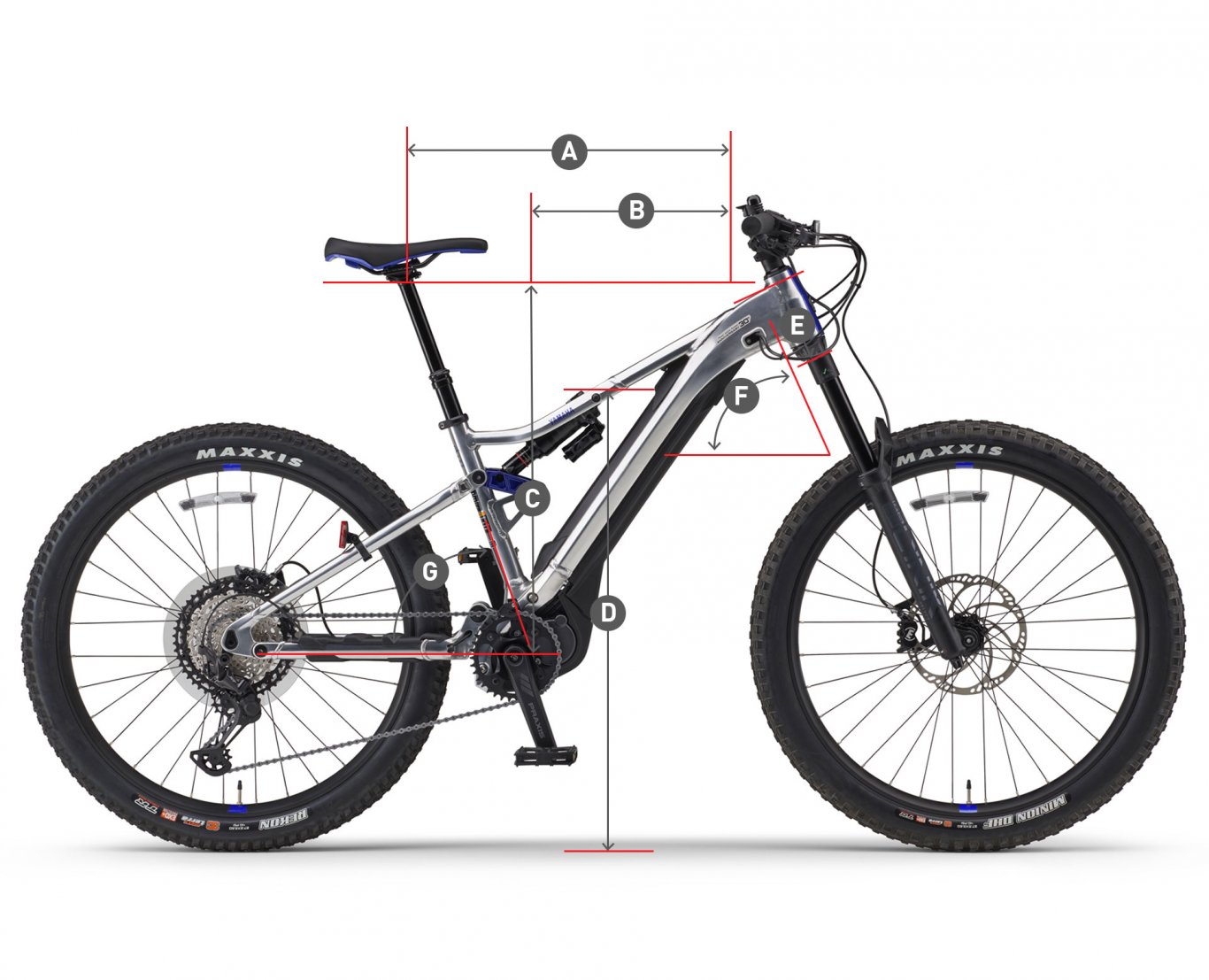

geometry

Yamaha YDX MORO 07 30TH ANNIVERSARY

Sizing Table

    SMALL MEDIUM LARGE
A TOP TUBE 57.2cm 61.9cm 66.6cm
B REACH LENGTH 39.3cm 43.7cm 48.2cm
C STACK HEIGHT 61.6cm 62.5cm 62.9cm
D STANDOVER HEIGHT 74.1cm 75.1cm 75.9cm
E HEAD TUBE LENGTH 11.0cm 12.0cm 12.5cm
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°
technology

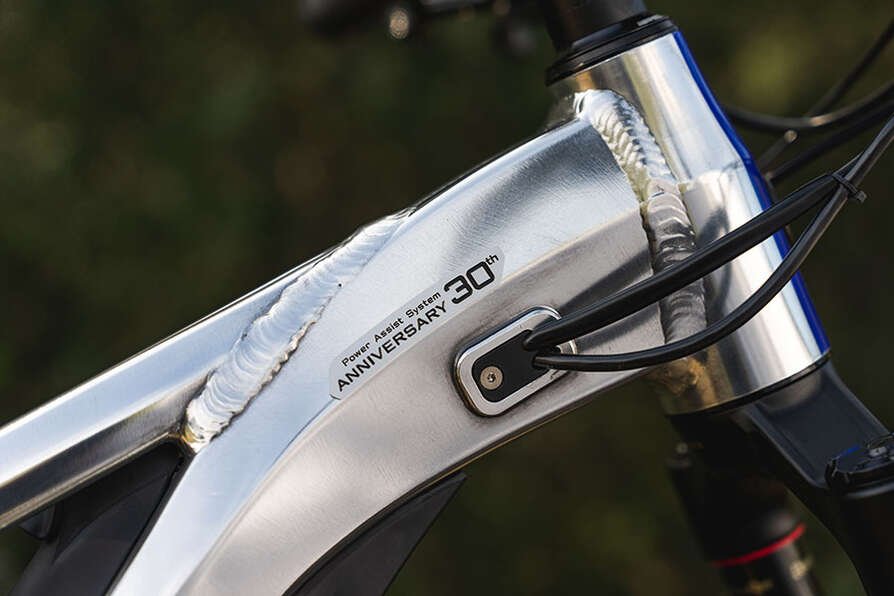

30th ANNIVERSARY EDITION Yamaha YDX MORO 07 30TH ANNIVERSARY

Although new to Canada in 2023, Yamaha Motor has 30 years of building power assist bicycles, developing the same foundation of quality, reliability, dependability and high-performance riders expect from any Yamaha. To celebrate this legacy, the YDX-MORO 07 is featured in a special edition Factory Silver with a “Power Assist System 30

PW-X3 MOTOR Yamaha YDX MORO 07 30TH ANNIVERSARY

The PW-X3 drive motor is Yamaha’s smallest and lightest to date and boasts the best power-to-weight ratio with jaw-dropping responsiveness and smooth power delivery. Featuring Yamaha’s Quad Sensor with Automatic Support and Walk Assist Modes, the PW-X3 propels riders to a max support speed of 32 km/h while flexing 500W of max-rated power and 85Nm of max torque.

HIGH-SPEC COMPONENTRY  Yamaha YDX MORO 07 30TH ANNIVERSARY

From tire to tire, the YDX-MORO 07 is packed with features that strengthen the connection between rider and bike. Equipped with premium Shimano XT shifter, derailer and cassette, the YDX-MORO 07 accelerates with razor-sharp shifting performance. When it comes to slowing down, it relies on its powerful MAGURA MT5 4 piston front and rear braking system. For when the going gets rough, the YDX-MORO 07 is equipped with ROCKSHOX LYRIK SELECT forks with 160mm of travel and ROCKSHOX SUPER DELUXE SELECT + rear shock.
key features
  • Limited Edition 30th Anniversary Livery & Emblem
  • The all-new PW-X3 mid drive motor
  • The all-new Interface X exceeds rider demands with intuitive movements to access power assist levels, walk assist and automatic support mode.
  • Premium suspension: ROCKSHOX SUPER DELUXE SELECT + rear and ROCKSHOX LYRIK SELECT forks
  • Increased shifting precision with the Shimano XT RD-M8100-SGS derailleur
  • 12-speed Shimano XT CS-M8100-12 cassette
  • 4-piston front and rear calipers paired with radial design master cylinders
  • Yamaha 500Wh battery with Charge-life indicator and Self-diagnosis display
  • YAMAHA 27.5+ Alloy rims with MAXXIS 27.5X2.6 tires for optimized traction
features and benefits

DRIVE TRAIN

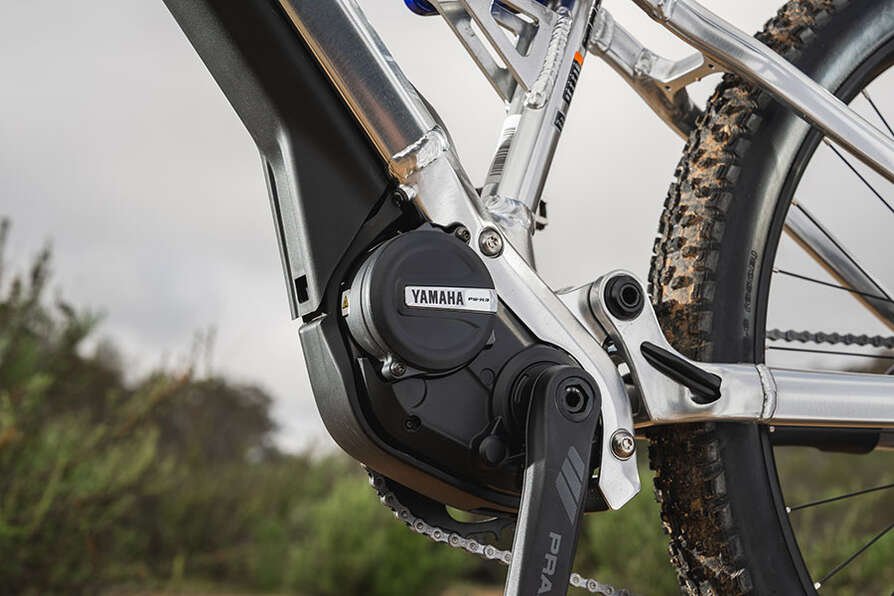

Drive Motor:

  • All-New YAMAHA PW-X3 Class Drive Motor
  • PW-X3 mid drive motor is Yamaha’s smallest and lightest to date and ensures the best power-to-weight ratio with jaw-dropping responsiveness and smooth power delivery.
    • Equipped with Yamaha Quad Sensor with:
      • Automatic Support and Walk Assist Modes
      • Rate power: 250W (nominal), 500W (maximum)
      • Max torque: 85Nm
      • Max speed support: 32.2kph (20mph)
      • Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
    • 2-bolt drive unit mount

Drive Line Components:

  • Shimano XT RD-M8100-SGS rear derailer
    • Reduced derailer travel and additional gears in the "sweet spot" for riders to find the best balance of power and cadence.
  • 12-speed Shimano XT CS-M8100-12 cassette
    • Optimized gears for riders to find the best balance of power and cadence.
  • Shimano XT SL-M8100-R shifter boasts razor-sharp shifting
  • 165mm Long PRAXIS E-CRANK Arm

CHASSIS

  • Frame:

  • Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.
    • Features Tapered Headtube
  • Mass has been centralized utilizing a combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.

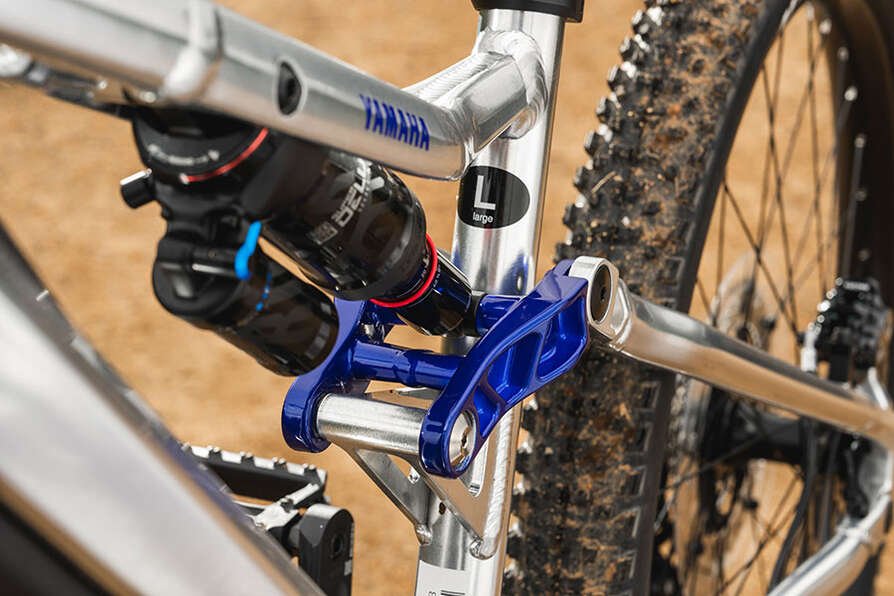

    • Suspension:

    • Rear Shock: ROCKSHOX SUPER DELUXE SELECT +
      • Custom-tuned for the YDX-MORO 07
      • Features 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options to give riders the ultimate confidence through rough terrain.
    • Front Fork: ROCKSHOX LYRIK SELECT
      • Charger RC damper with low-speed compression and rebound adjust
    •
    • Internal cable/housing routing for seamless fit and finish
    • 12x148mm rear axle spacing

ELECTRONICS

  • Yamaha 500Wh 36V Battery
    • Charge-life indicator and Self-diagnosis display
    • Anti-Vibration Mounting Plate
    • Weight: 3kg (6.61lbs)
    • Re-charge time: 1-hour 80%, 4-hour 100%
  • YAMAHA Interface X Control
    • 3-colour LED support-mode level light indicator
    • (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator)
    • Walk Assist mode (Purple LED indicator)
    • Bluetooth™ connectivity
    • LED brightness adjustability
    • Battery capacity (4-LED capacity indicators)
